What are the official Oricom AIR40 specs?

The safest headline set for the Oricom AIR40 is: twin-cylinder 12–13.8V operation, 40 mm bores, 130 L/min at 0 PSI, 108 L/min at 40 PSI, 150 PSI max working pressure, 300 PSI max pressure, 62A draw under load, 6 m hose, NPT 1/4 quick connect, washable air filters, thermal protection, and a 3-year warranty. Those are the strongest official performance and feature claims for customer-facing copy.

Do I really need a vehicle-specific bracket?

In most cases, yes, or at least a vehicle-specific mounting plan. Good brackets are typically engineered around exact vehicles and mount points, and many use factory holes or captive nuts for a cleaner install. ARB, KAON, Scrub King, and Pirate Camp Co all sell model/location-specific compressor mounts, which is a strong signal that "universal fit" is rarely the best long-term answer.

What about recovery and lockers?

On-board air helps most obviously with traction management and post-recovery tyre-pressure changes, but compressors are also widely used to actuate air lockers. ARB’s twin compressor and TJM’s Pro Series Twin are both positioned around locker compatibility, which makes "recovery-ready pressure management and locker-friendly system planning" a sensible, accurate way to frame this on-page.

Oricom does not publish a dB figure in the AIR40 materials reviewed for this brief. The practical takeaway is that mount location and isolation matter more than a missing dB number: stable dedicated brackets reduce movement and vibration, and remote air outlets let you place the compressor in a location that is better for heat and noise management than a loose in-cabin setup.

On-Board Air Installation Perth

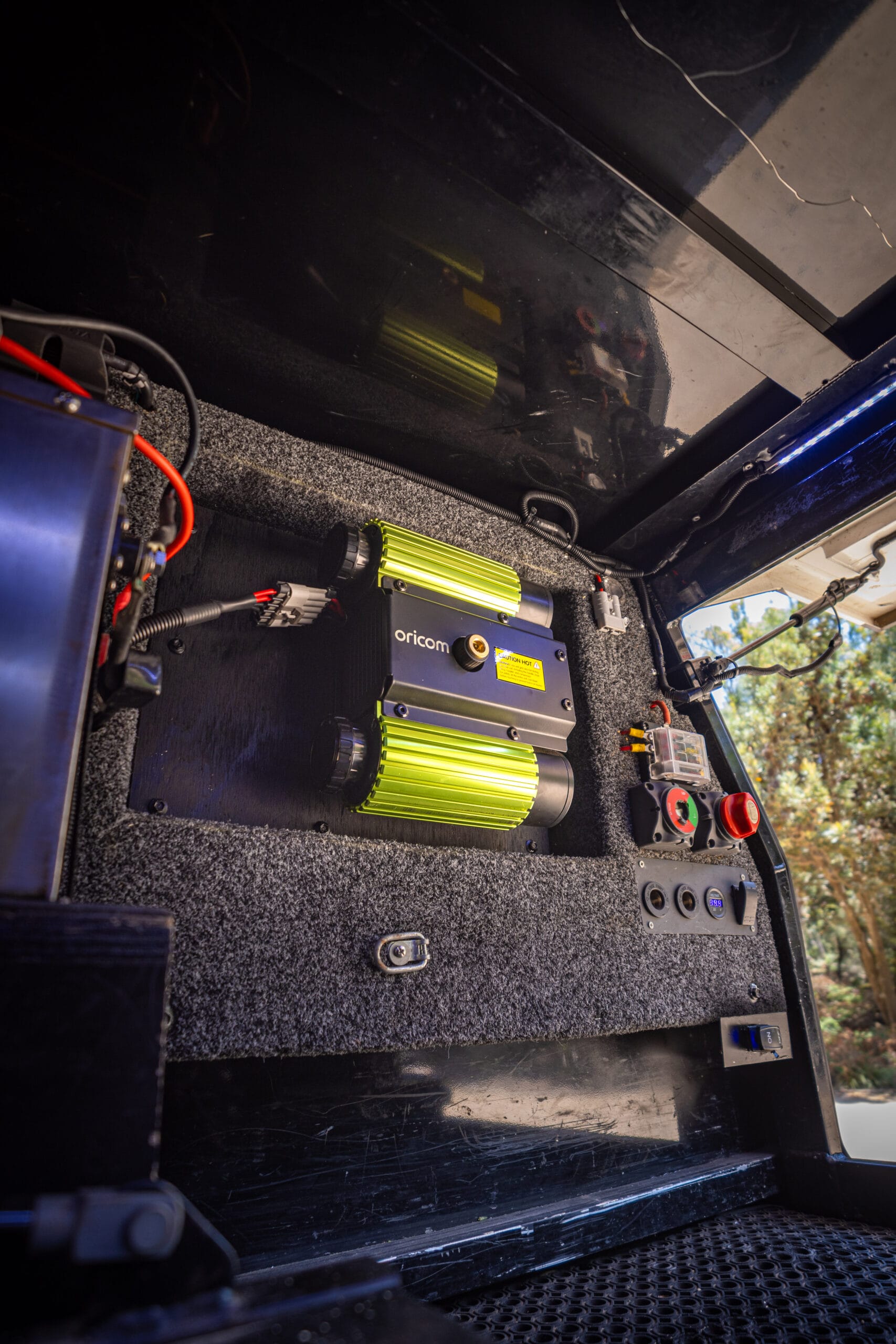

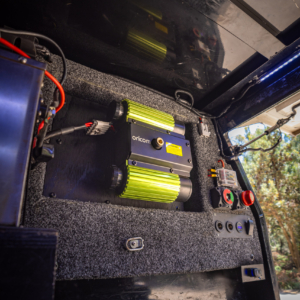

on-board-air-installation-perth-canopy-electrical-panel

on-board-air-installation-perth-compressor-fuse-panel

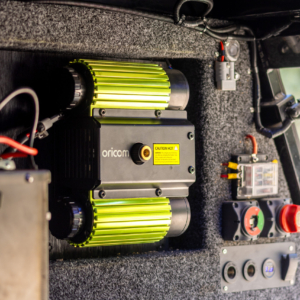

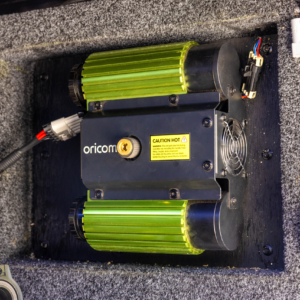

on-board-air-installation-perth-oricom-air40-canopy-mount

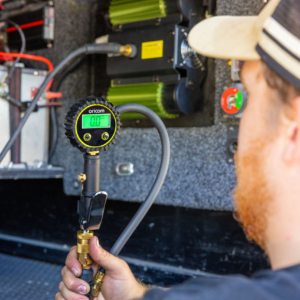

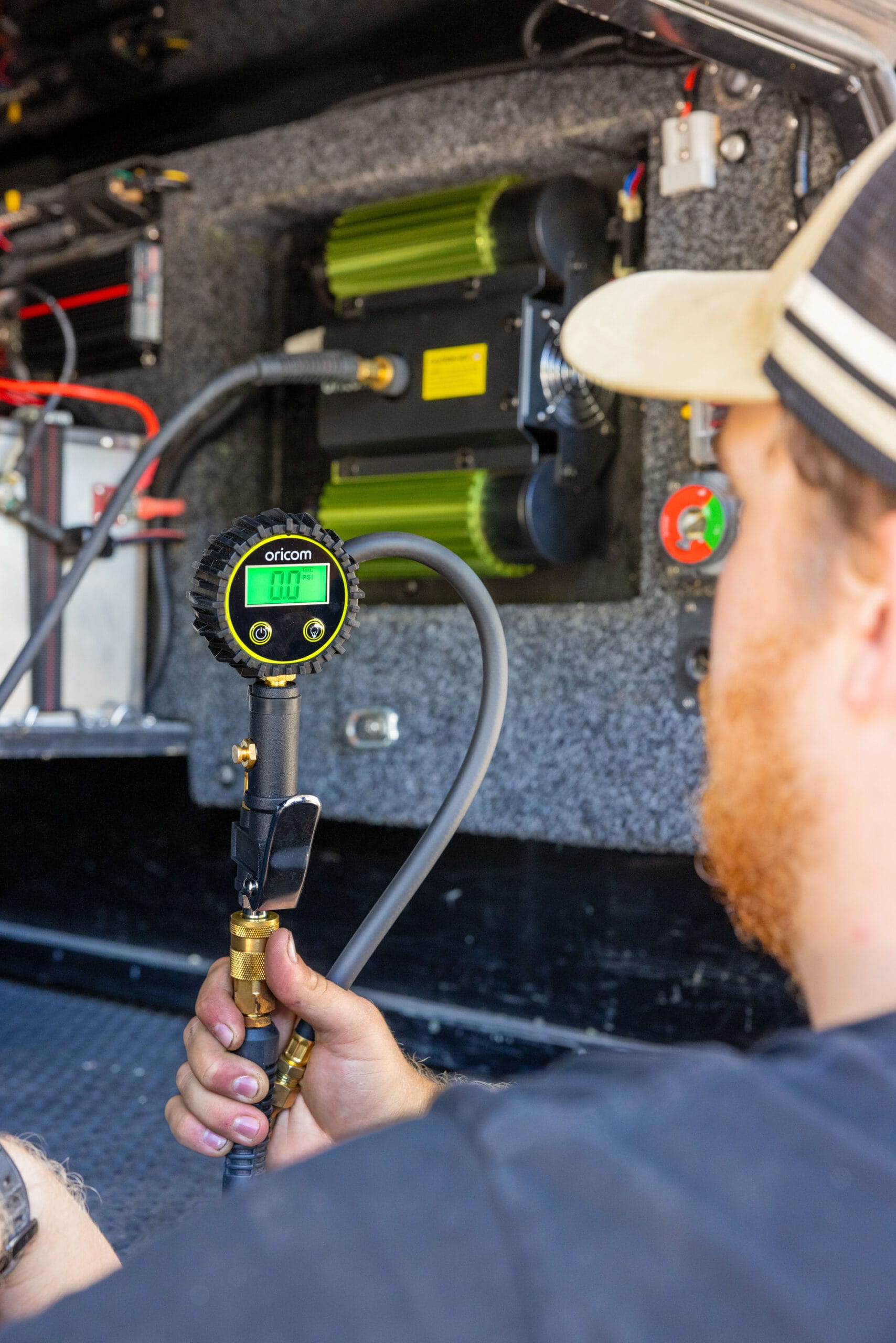

on-board-air-installation-perth-technician-testing-tyre-pressure

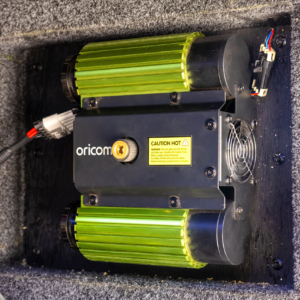

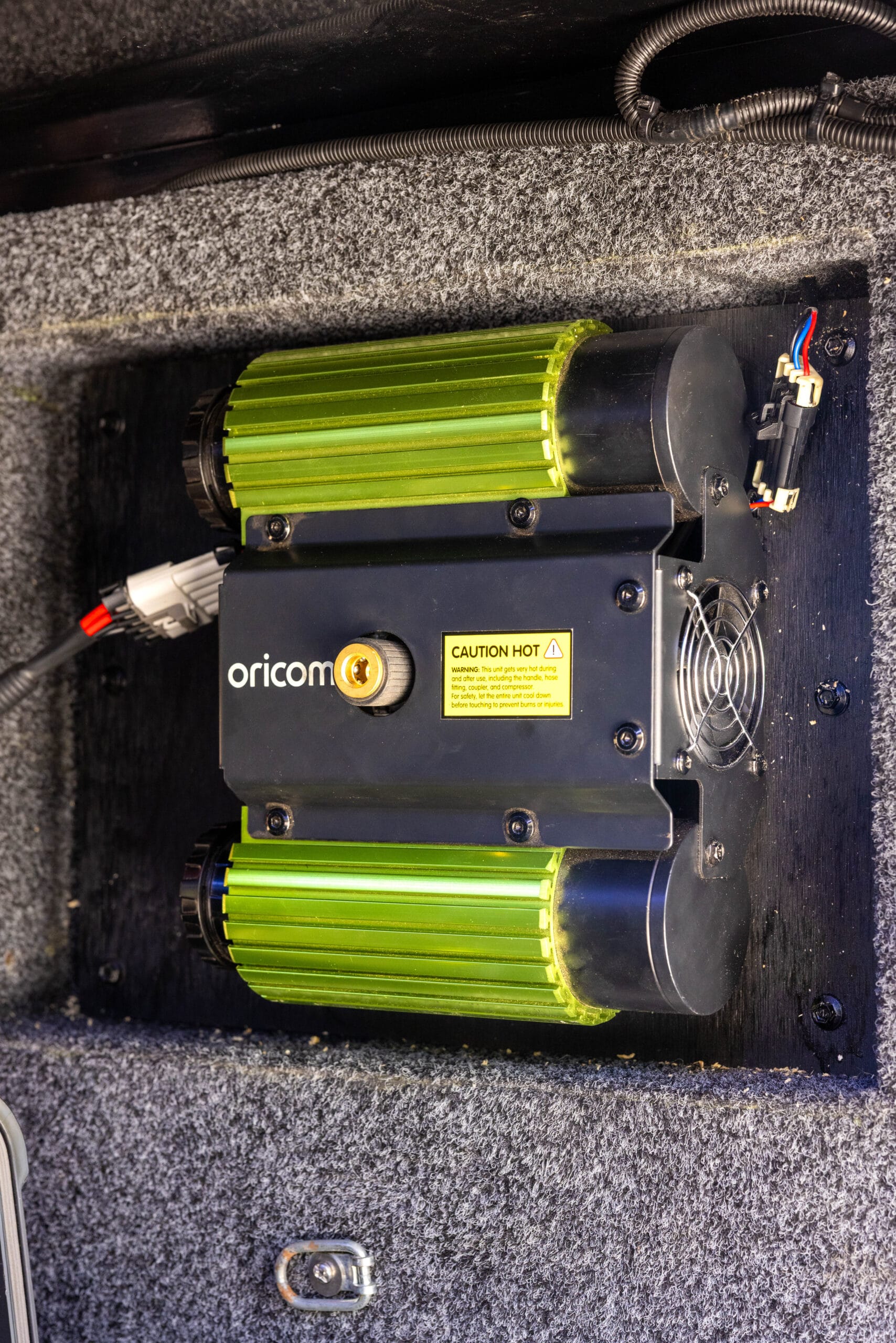

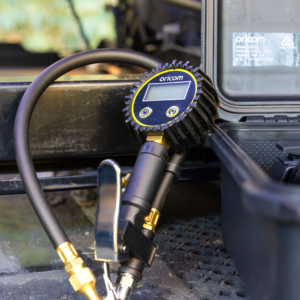

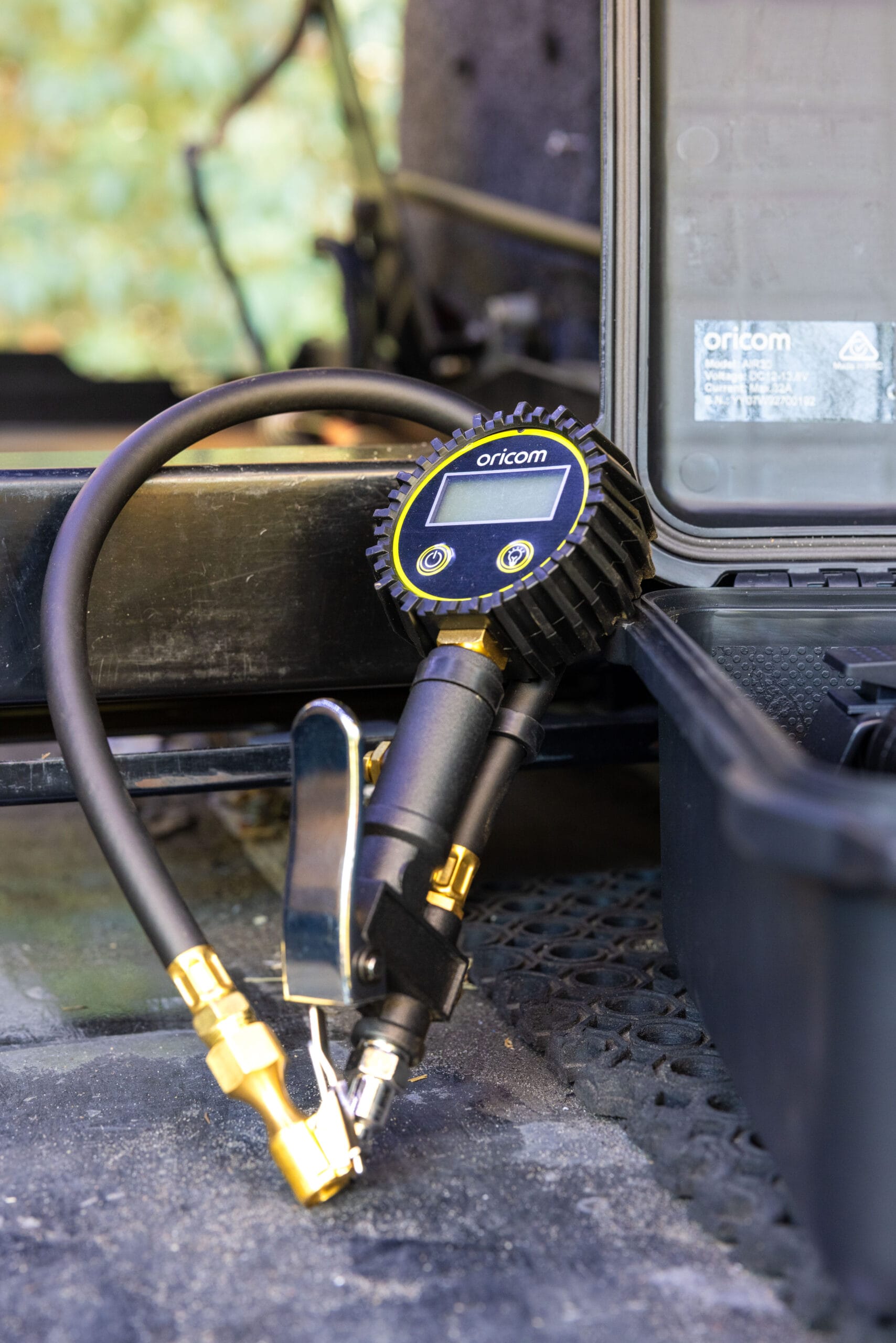

on-board-air-installation-perth-tyre-inflation-gauge

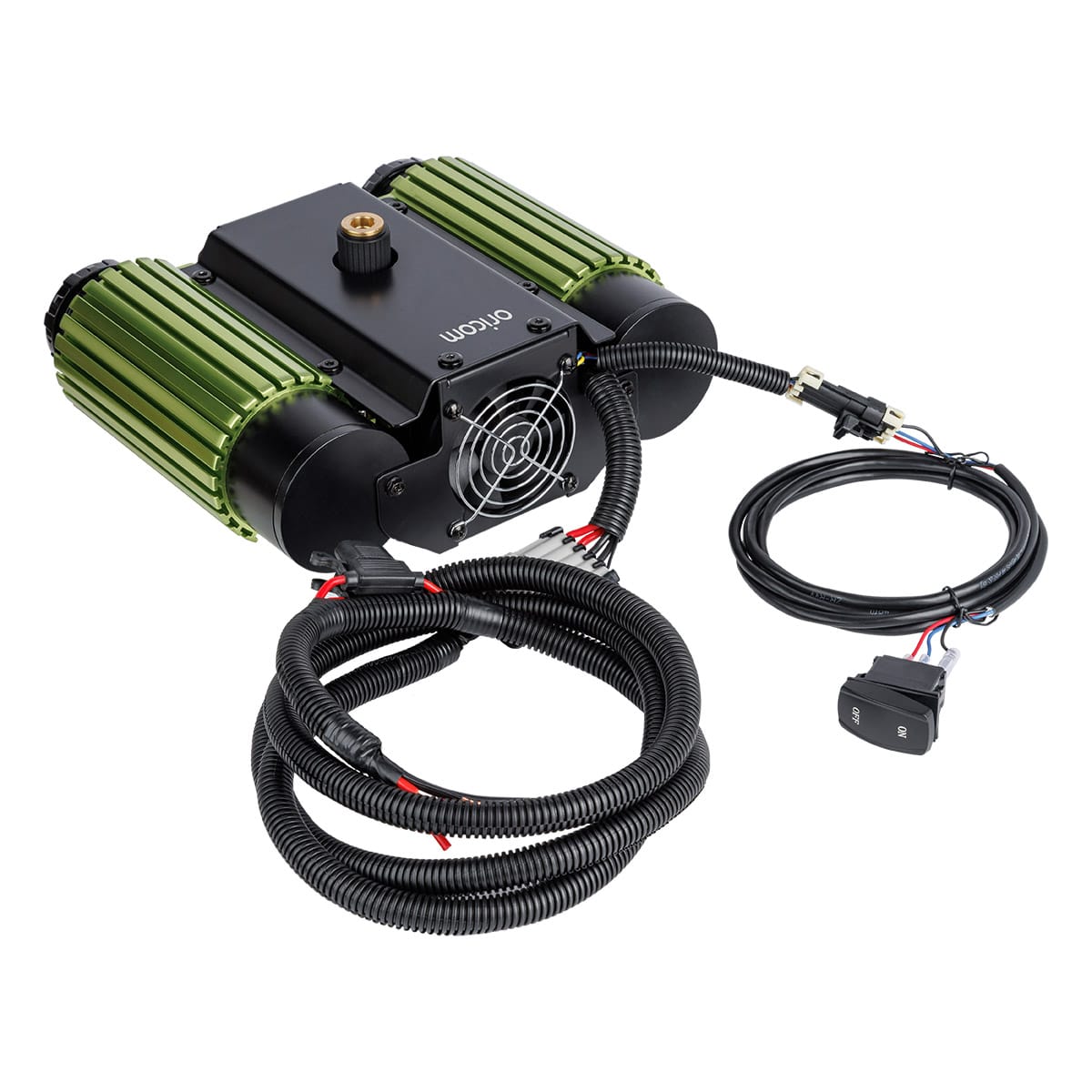

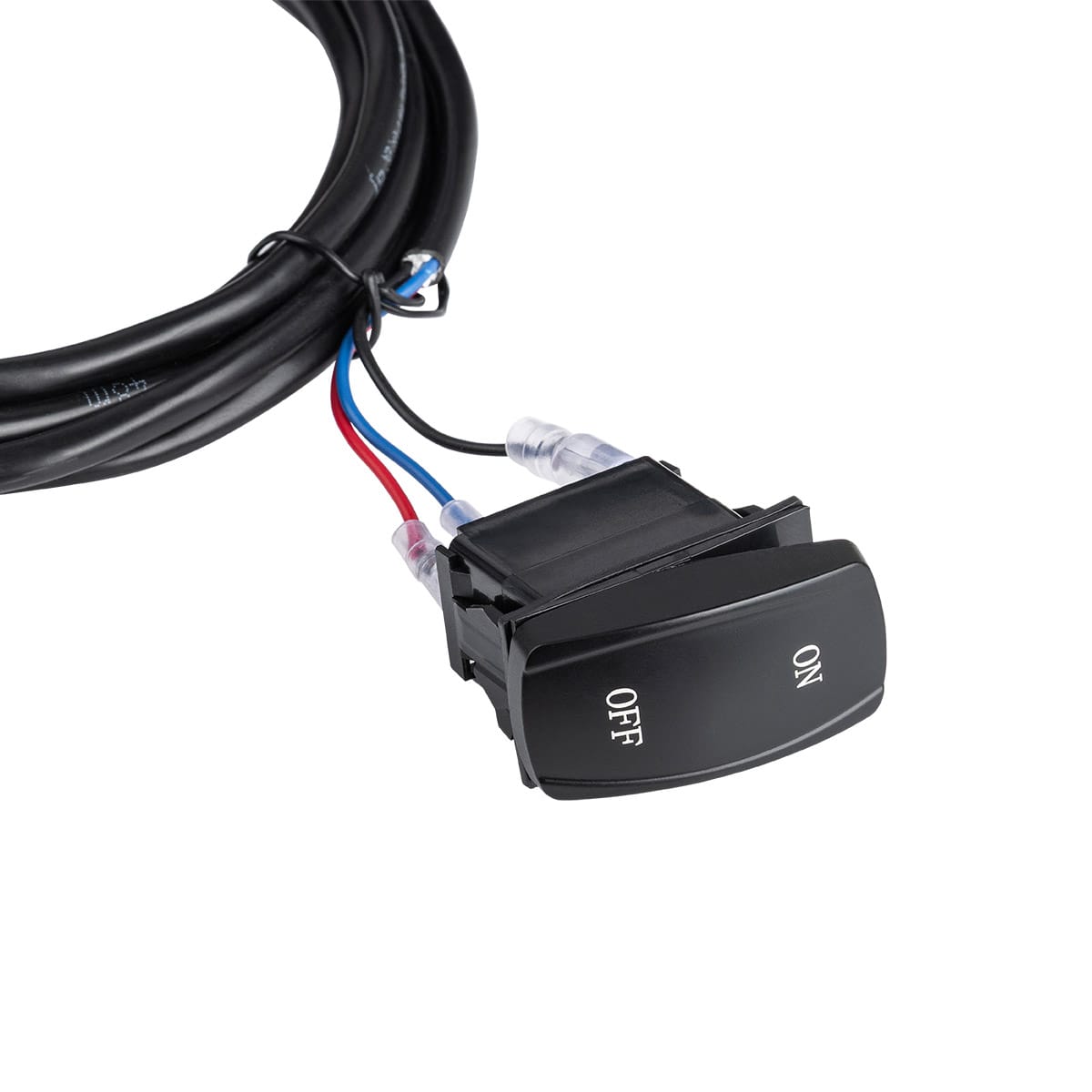

oricom-air40-compressor-kit-hoses-switch

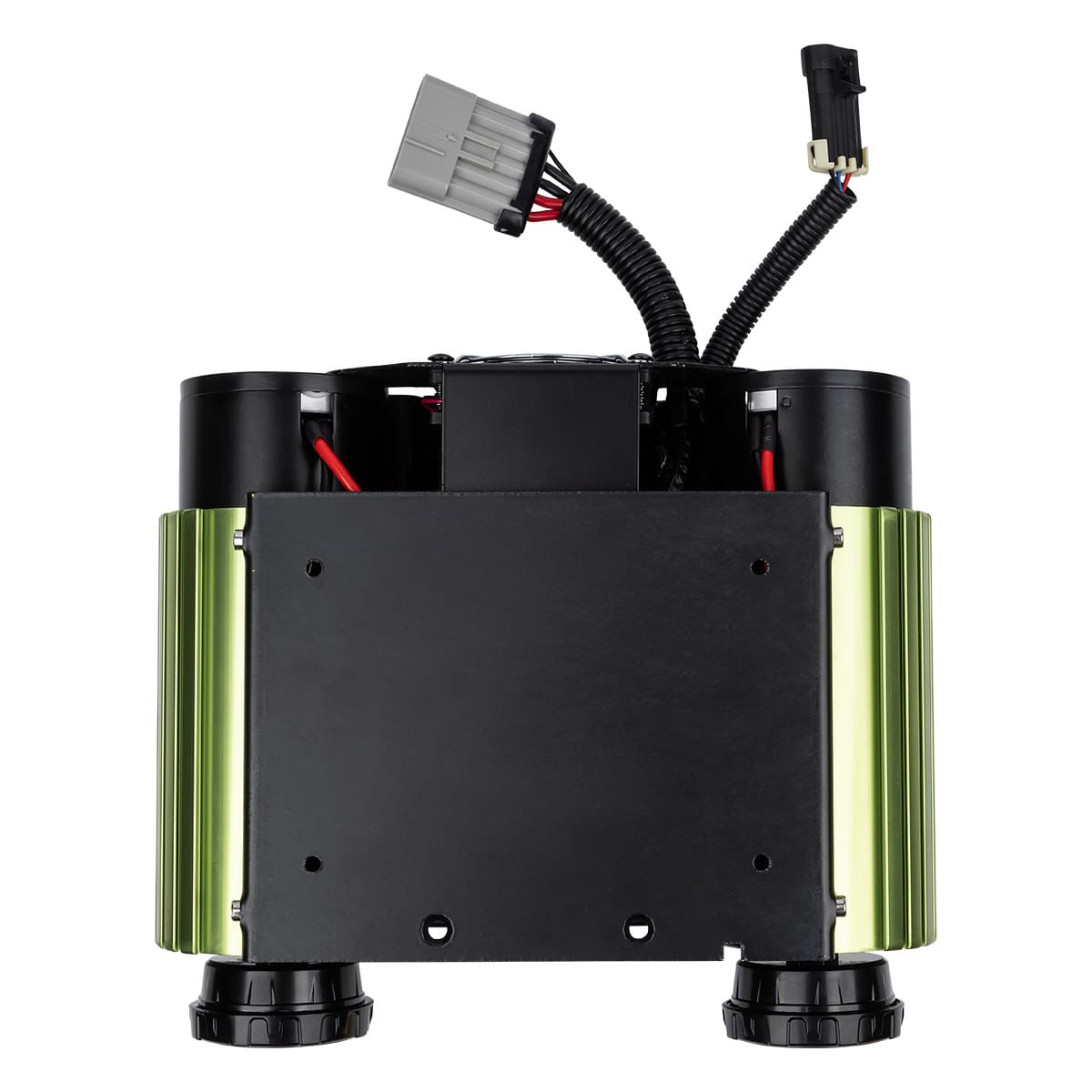

oricom-air40-compressor-mounting-bracket-underside

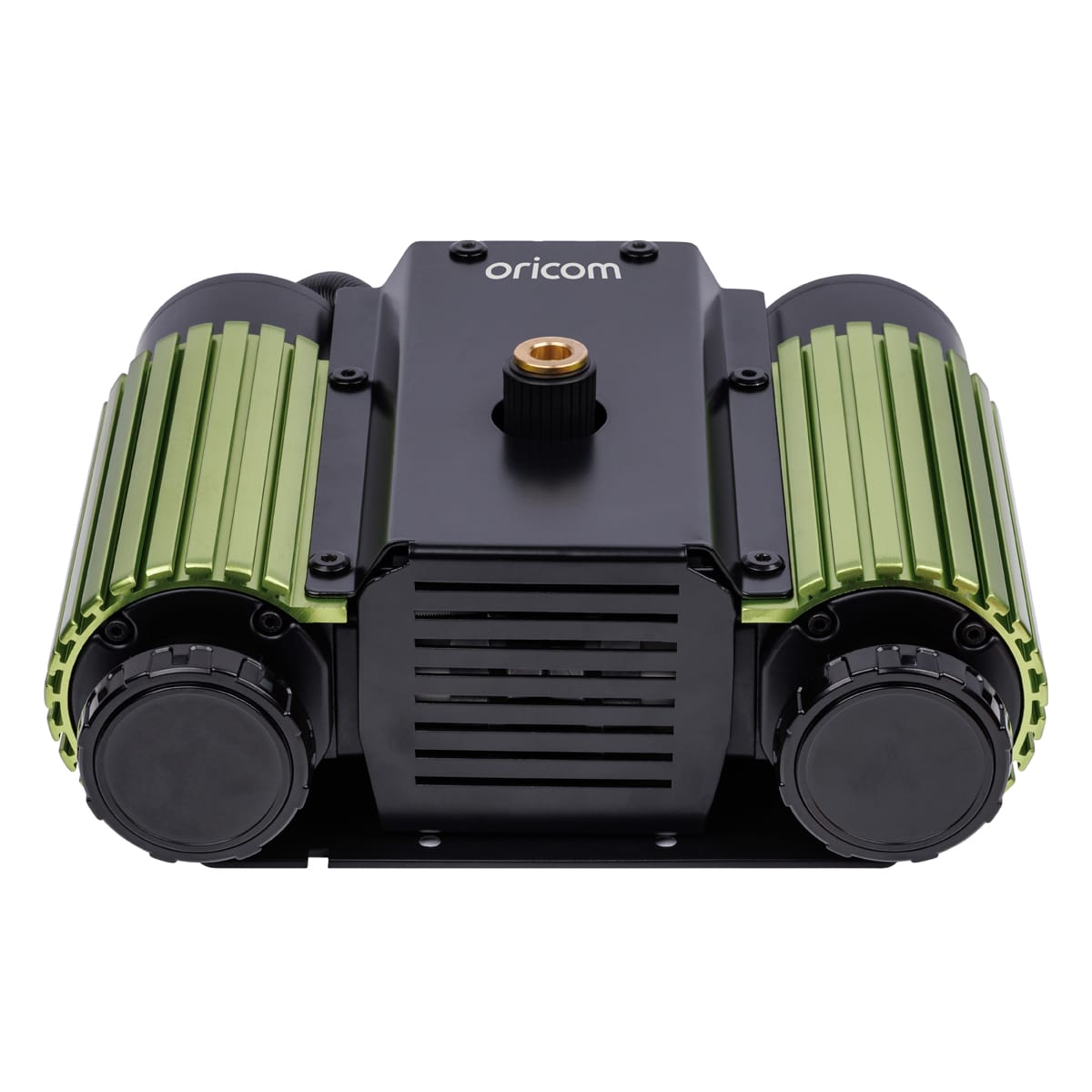

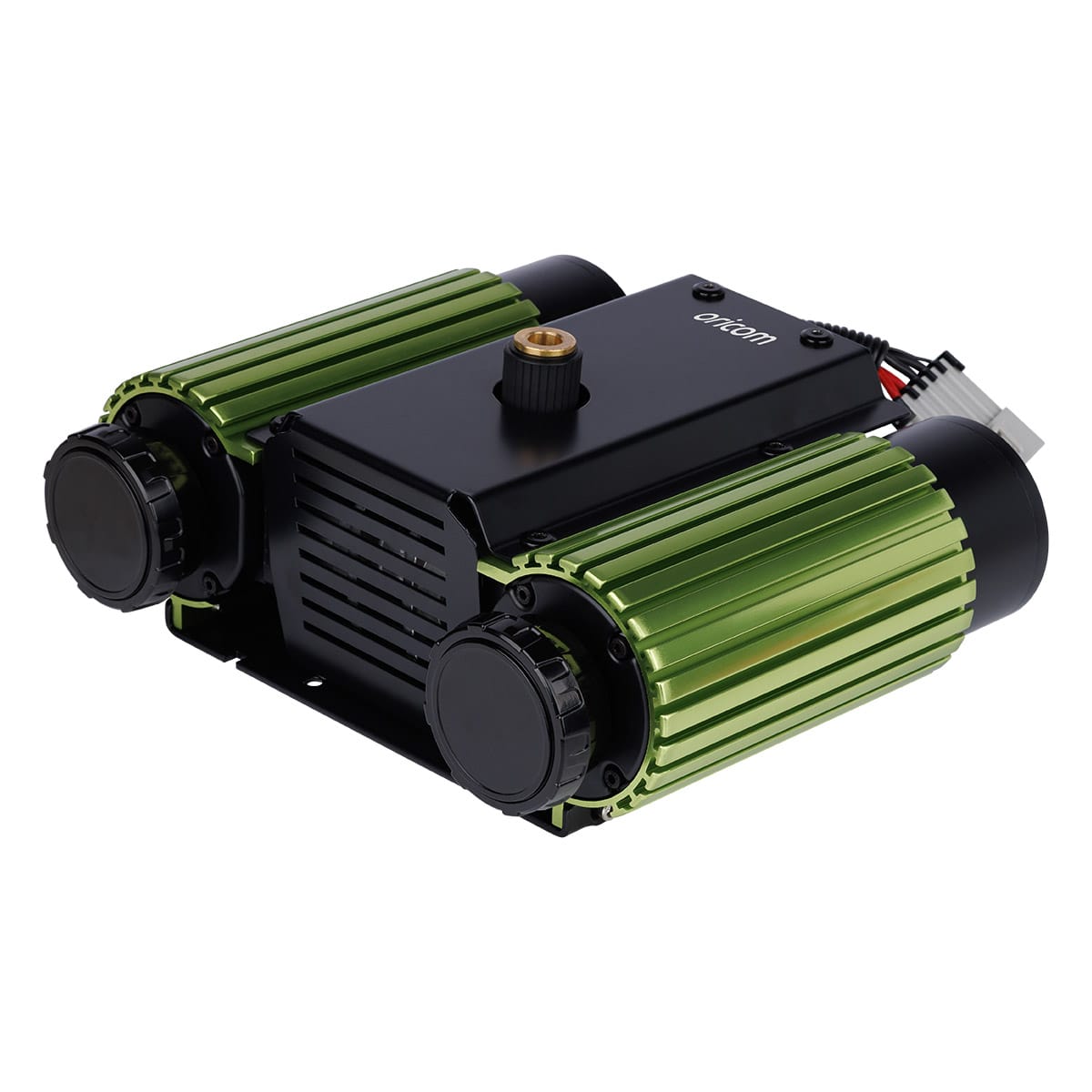

oricom-air40-compressor-perspective-view

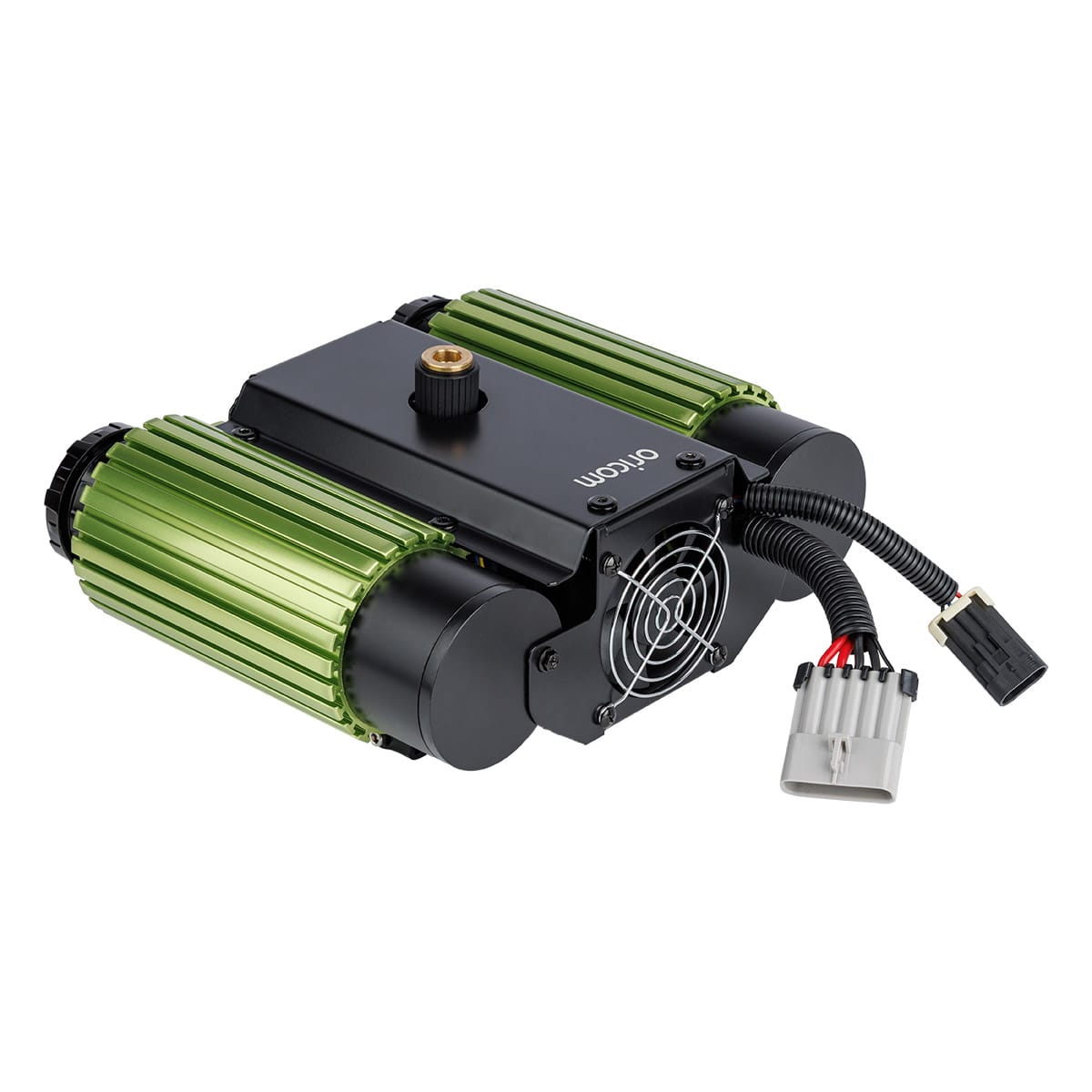

oricom-air40-compressor-wiring-harness-angle

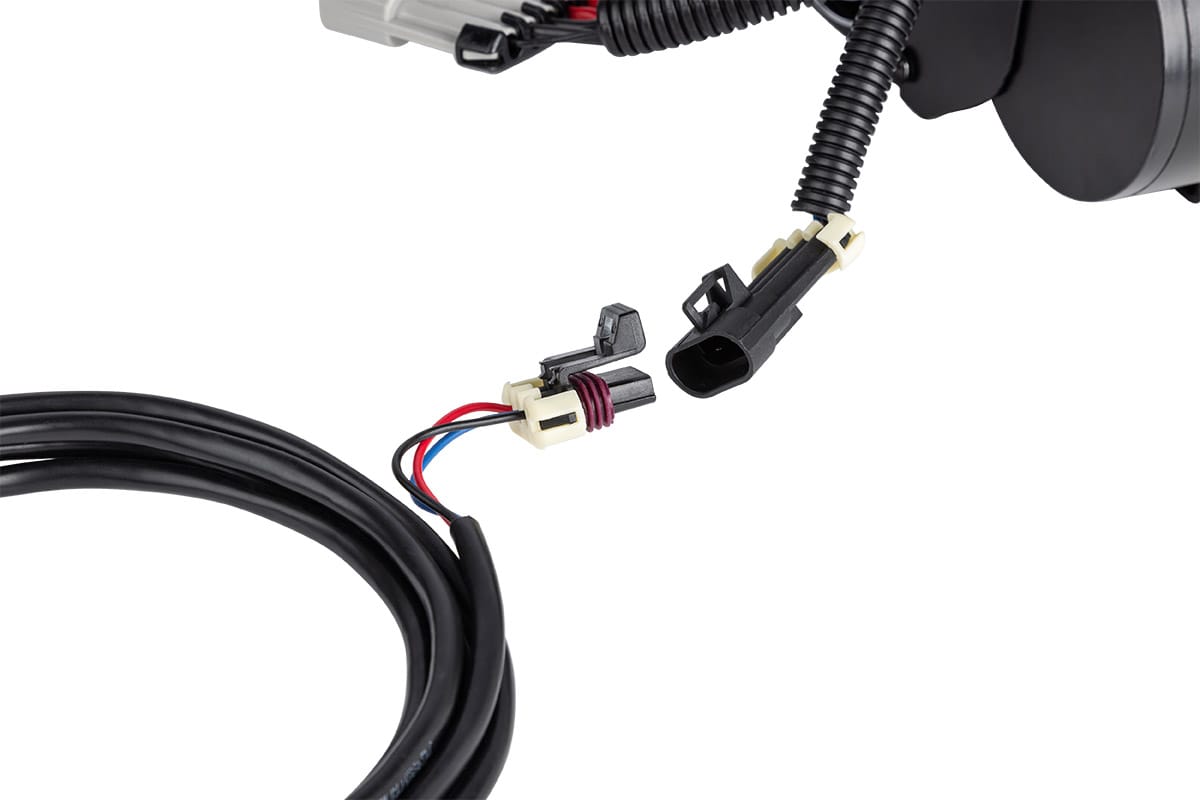

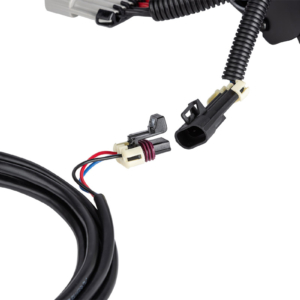

oricom-air40-connector-plugs-mid-connection

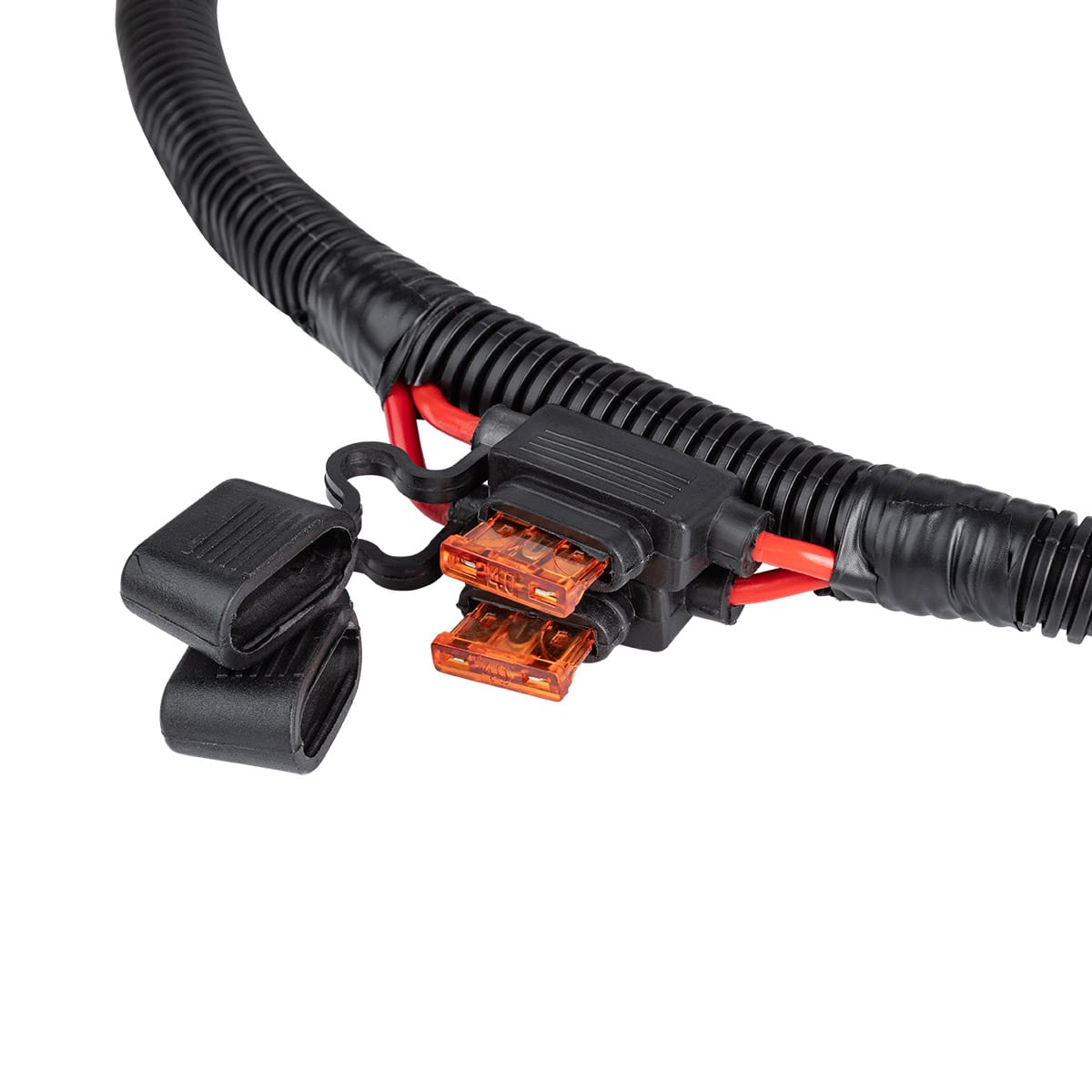

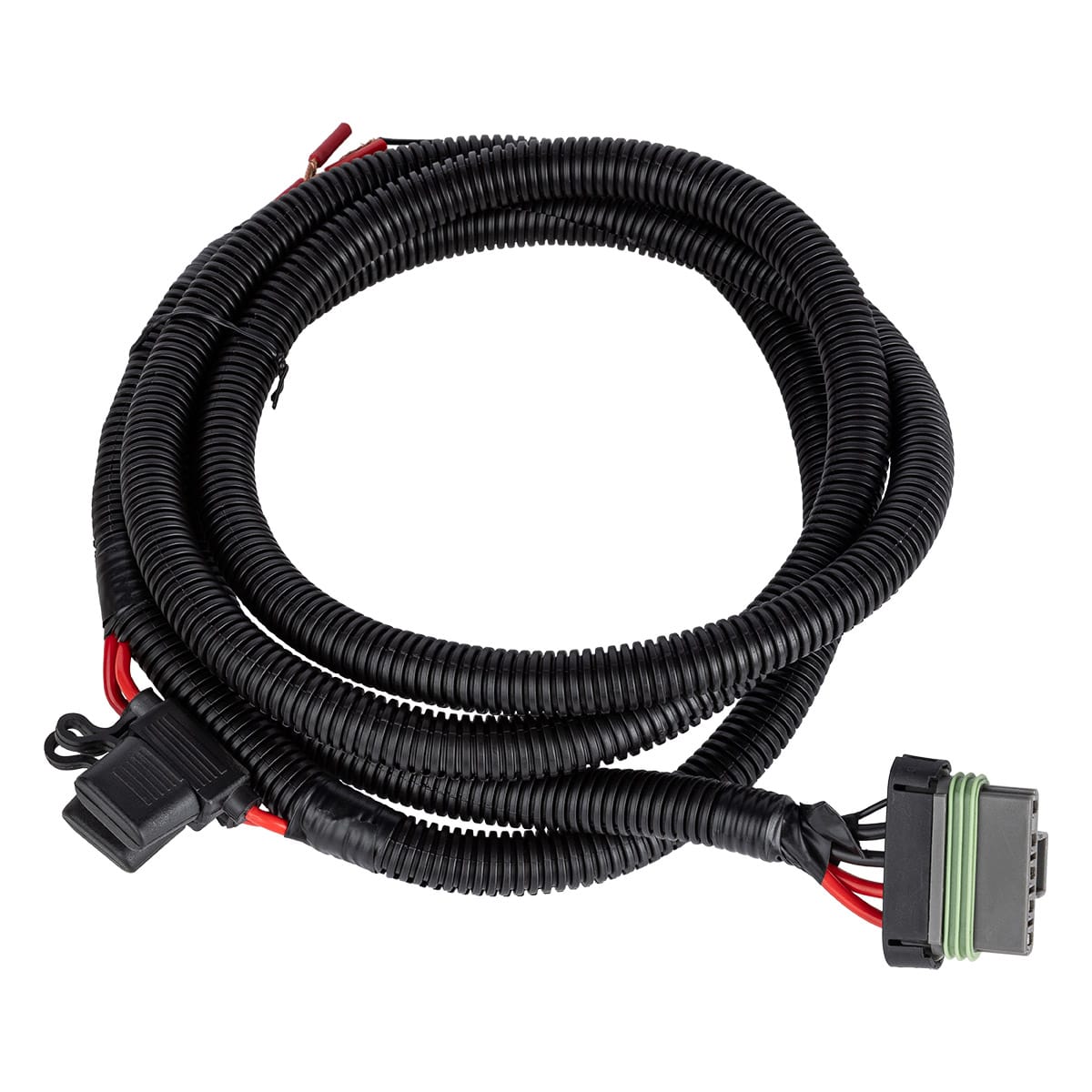

oricom-air40-wiring-harness-coil-fuse-holder

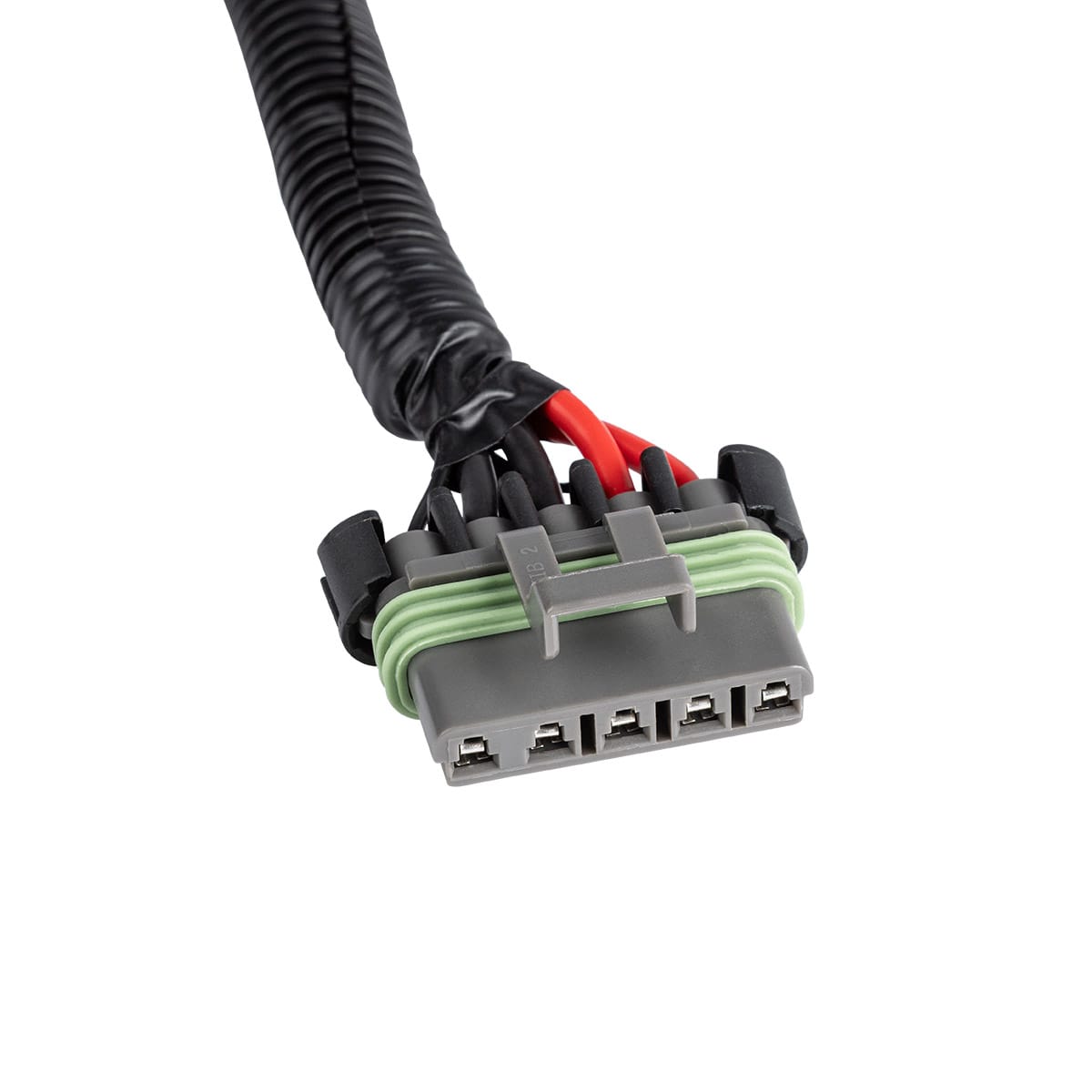

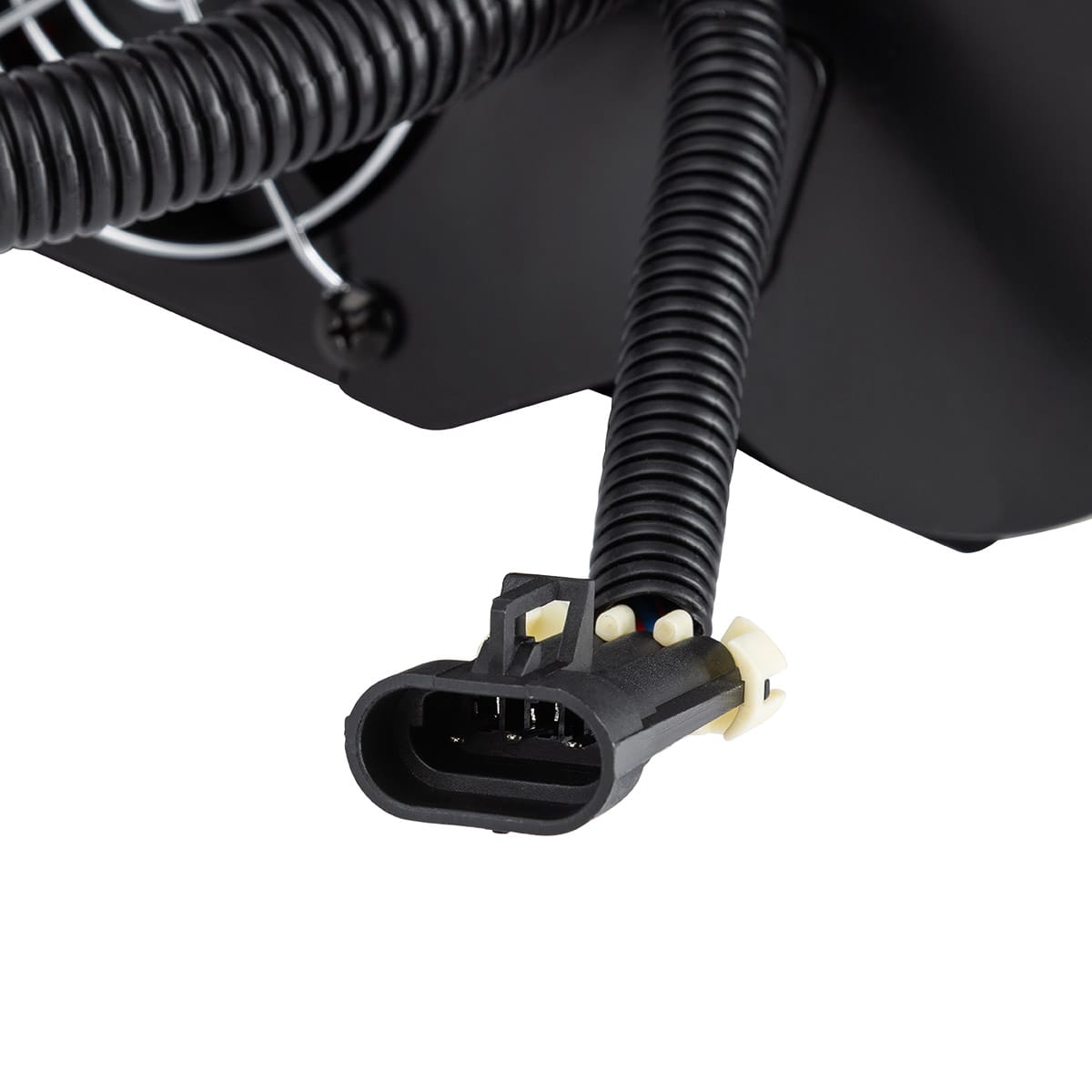

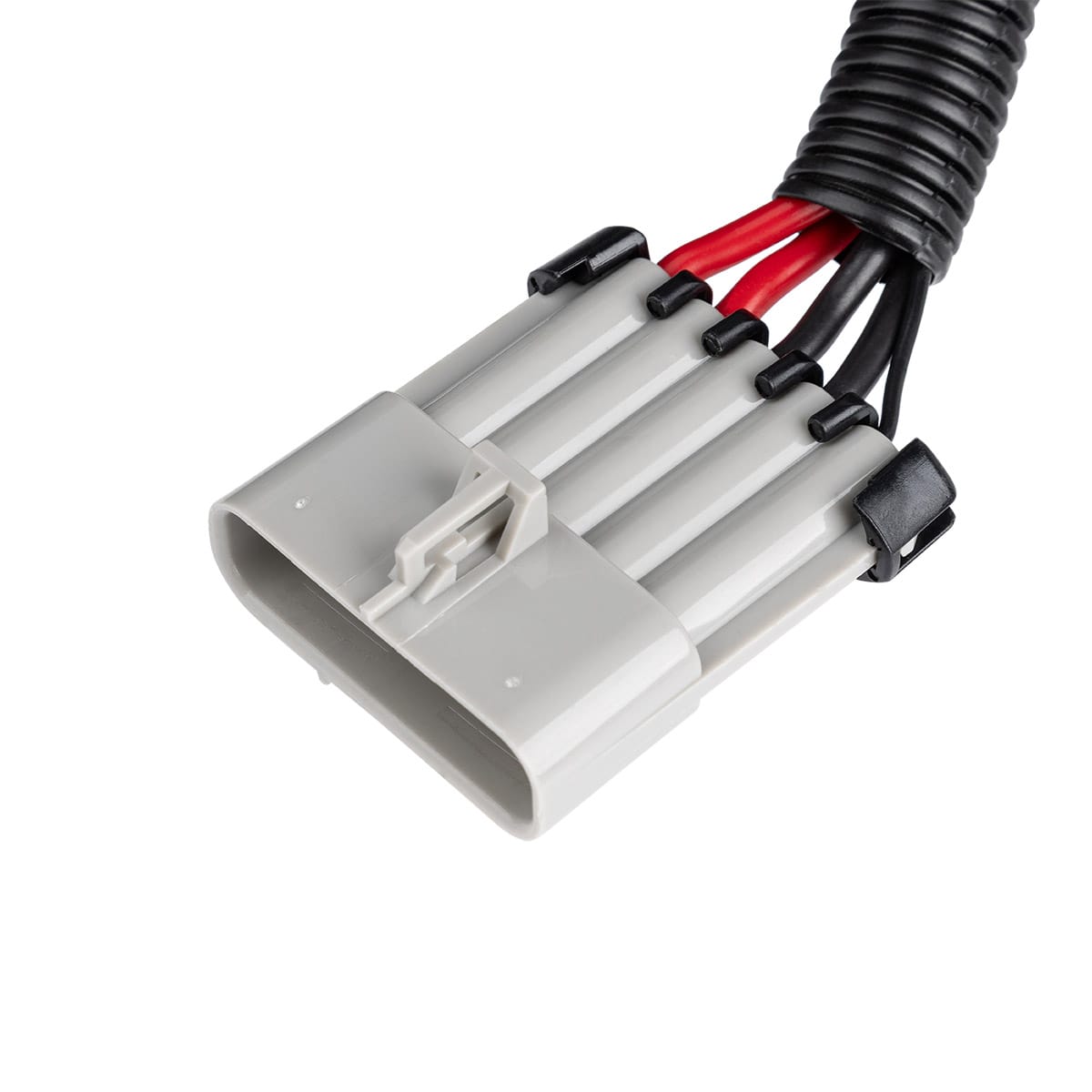

oricom-air40-wiring-harness-connector-plug

On-Board Air Installation Perth

Get a quote

At West Coast Off Road, we supply and install on-board air systems in Perth for 4WDs, touring wagons, and work utes. From hard-mounting the Oricom AIR40 to fitting remote air outlets, tanks, switches, and tidy plumbing, we build practical compressor setups that are easier to use on the road, on the tracks, and on the job.

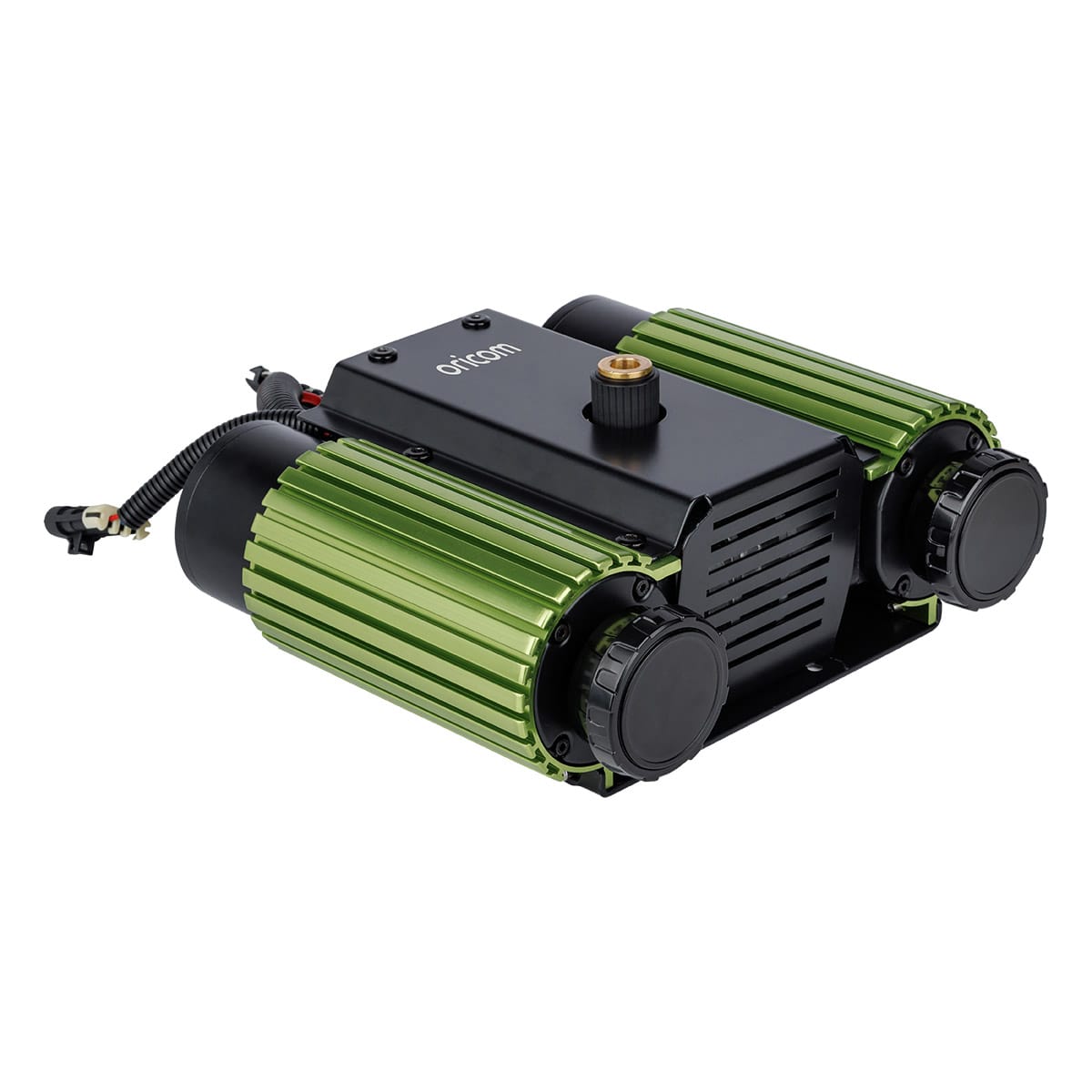

The Oricom AIR40 (which you can check out over on the official Oricom site) is a serious twin-cylinder 12V compressor with up to 130 L/min airflow at 0 PSI, 108 L/min at 40 PSI, 150 PSI max working pressure, 62A draw under load, washable filters, thermal protection, and a 3-year warranty. That makes it a strong option for faster tyre inflation and permanent on-board air fitment without stepping straight into premium-price twin-compressor territory.

We can pair the AIR40 with custom or vehicle-specific mounting solutions, air tanks, a twin tyre inflator/deflator kit or a quad tyre inflator/deflator kit, quick-connect outlets, switch mounts, and accessory plumbing to suit the way you actually use your vehicle. Whether you want a clean under-bonnet setup, an under-seat or under-tub solution, or a canopy/tray air system, the goal is the same: a secure install with good service access, sensible wiring, and room for future expansion.

If you’re looking for on-board air installation in Perth, talk to West Coast Off Road about an AIR40-based setup that suits your vehicle, your tyre size, and the kind of WA driving you do most. West Coast Off Road is based in Ridgewood, WA and services Perth and Western Australia.

Get a quote

On-Board Air Installation Perth FAQ's

Yes, that is one of the clearest intended use-cases. Oricom describes the AIR40 as engineered for fast inflation of larger 4x4 and off-road tyres. For maximum efficiency, pairing this setup with a twin tyre inflator/deflator kit or a quad tyre inflator/deflator kit allows you to manage multiple tyres simultaneously. The airflow numbers are strong enough to position it confidently for touring wagons, dual-cab utes, and overland builds.

Potentially yes, but location depends on heat, water exposure, clearance, wiring distance, and service access. Oricom specifies that the AIR40 should be mounted vertically in a stable, dry area, away from submersion risk and heat sources, with clearance around the filters and fan housings; the wider Australian bracket market shows viable installs in engine bays, under seats, and under tubs depending on the vehicle.

A tank is not mandatory for tyre inflation. A hard-mounted compressor alone is enough for everyday air-up duties. A tank becomes more useful if you want reserve air, remote hose-out convenience, short bursts for compatible air tools, or future pneumatic expansion. ARB explicitly says its twin compressor is suitable for many air tools when paired with an optional 4L tank, and the Australian market includes everything from budget 4L steel tanks to branded 2.5L and 5L options.

It can be part of an air-tool-capable setup, but the answer depends on which tool and whether a tank is fitted. Premium twin systems like ARB and TJM are the clearest references here: ARB says its twin compressor suits many air tools with a 4L tank, and TJM’s twin is built around accessory ports and optional tanks. The right page wording is that on-board air can support compatible low- to moderate-demand pneumatic tasks, not that it fully replaces a workshop compressor.

Yes, compressed-air systems commonly support airbag suspension when paired with the correct controller, tank/plumbing strategy, and moisture management. ARB sells an air suspension control module designed for ARB compressors, and Air On Board sells complete compressor-and-tank systems with air bag controllers. The careful wording for your page is that suspension support is possible with the right matched components, and compatibility should be confirmed at quote stage rather than assumed.

The AIR40 is a meaningful 12V load. Oricom lists 62A under load and 35A no load, advises that the compressor is best operated with the engine running, and includes fused wiring looms. If the mounting point is far from the battery, cable routing and voltage drop matter even more; TJM’s twin-compressor guide is a useful market reference here because it specifies larger cable sizes as distance increases.

This is the one spec I would handle carefully. Oricom’s product page says "100% until thermal cut-out operates," but the user guide gives a working/rest cycle and warns that higher ambient temperatures reduce operating time before the compressor must rest. For sales copy, I would say the AIR40 is thermally protected and intended for sustained 4WD use within the manufacturer’s operating guidance, which is more accurate than quoting a simple absolute.
